ThinkTel trunk -- Username (Pilot number) is displayed on every call

VitalPBX
1

Hi all,

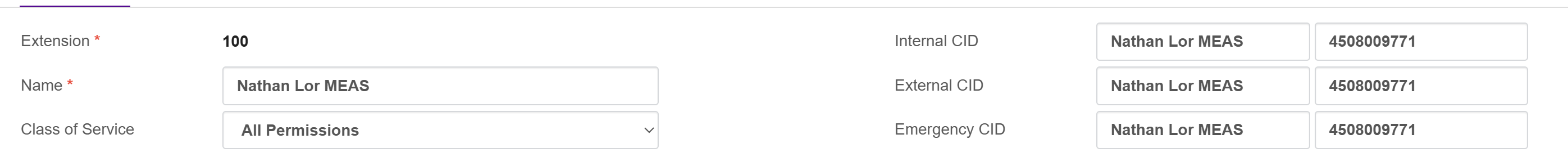

We have a ThinkTel trunk configured and while testing calls, we noticed that the pilot number (username corresponding to a 10 digits number) is being displayed on outbound calls. We looked at our configuration and we find no way to force it to use CID extensions information. Below is the CID in the extension.

image2792Ă—270 29.5 KB

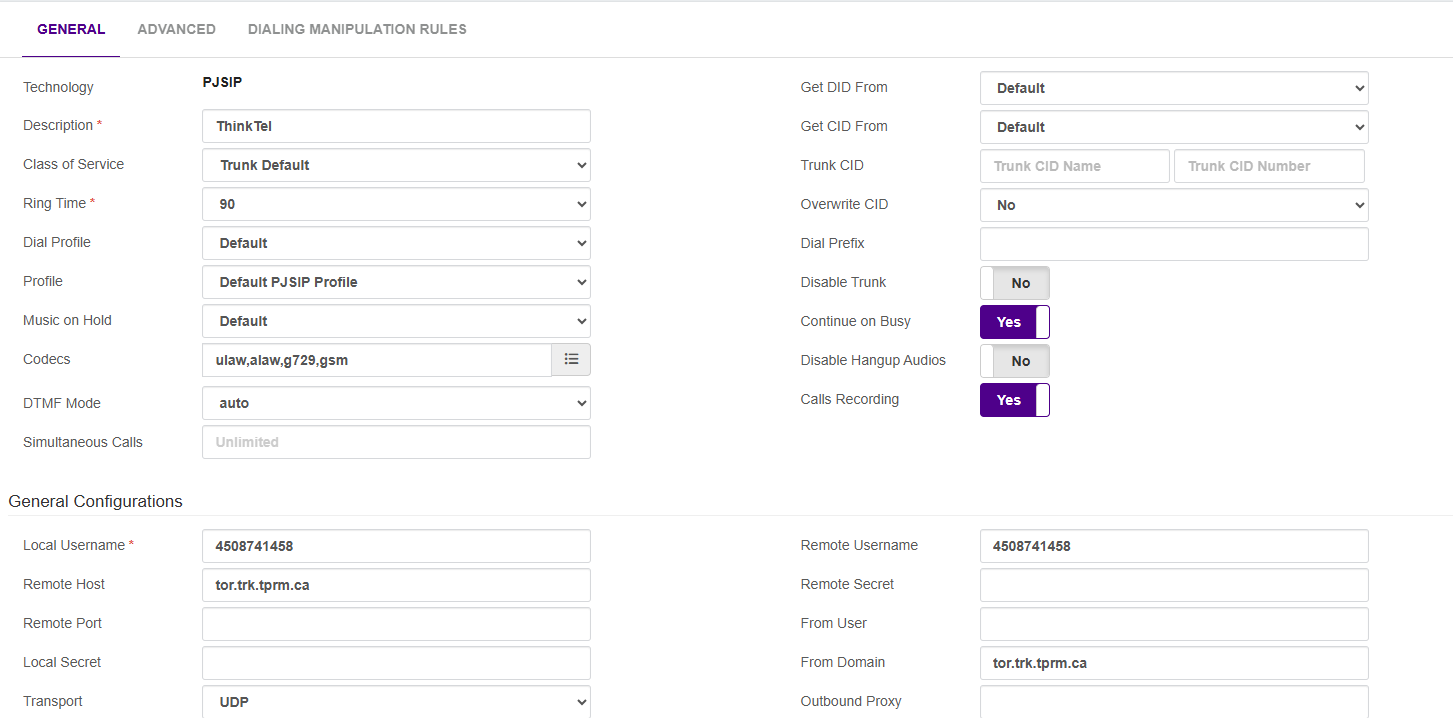

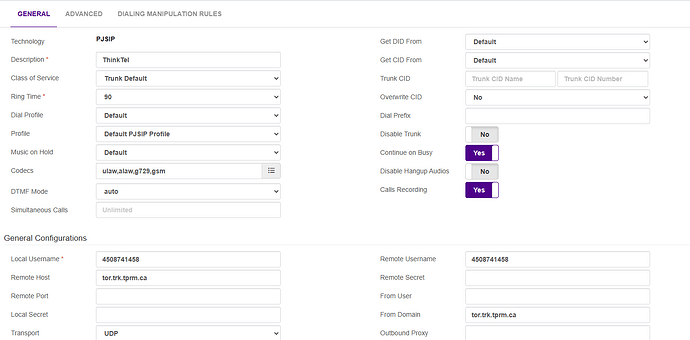

Here is the associated configuration in the ThinkTel trunk. As you can seem the Override CID is set to NO and based on the documentation, it shall take the CID from the extension.

image2734Ă—334 30.7 KB

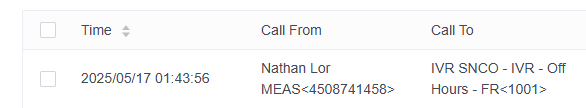

Here is the number captured on another of our PBX

image586Ă—108 2.78 KB

As you can see the number sent is 4508741458 which is not the number in the extension.

Everything we did in terms of configuration seems to be right but we are unable to override the number above.

Any help will definitely be appreciated!

2

Are populating the trunk parameter “From User” with that pilot number?

3

Hi Miguel,

Thanks for your help! The From User parameter is not populated as shown in the screenshot below. We also check usin sngrep and we didn’t find anything that would explain the pilot is used.

image1453Ă—718 31.6 KB

In the extension, we changed the External CID name and DID name to something different to check whether the field is correctly picked up. If CID name is changed, it does reflects on the call. If DID is changed, the field is still ignored. Any combination of the 2 fields give the same result as explained.

4

That means that you need to set up some settings in your VoIP provider to allow custom CID Numbers. Nothing to do with VitalPBX!

5

Hi Miguel,

Ok we will revert to our VOIP provider and see if we can figure out why.

Thank you for your help!

6

Just a follow up for everyone in case they encountered the same problem. ThinkTel does not activate automatically the custom CID upon new trunk activation. We need to contact them. Otherwise, pilot number will be sent by default.

7

That’s what I thought!

8

We didn’t have that issue with our other trunks so didn’t expect to be the reason. :slight_smile: . @miguel , you were definitely helpful!

Thanks again!

1 Like
