Telnyx PJSIP errors

VitalPBX
1

Hello, I am unable to setup Telnyx with PJSIP. SIP (only) is just fine.

Unfortunately, I would like to be able to use Telnyx and their T.38 fax capabilities but it seems the only way is to set it up with PJSIP.

I am getting those errors and I am not sure what is the cause:

2023-07-26 15:41:14] ERROR[22850] res_pjsip.c: Endpoint 'Telnyx_PJSIP': Could not create dialog to invalid URI 'Telnyx_PJSIP'. Is endpoint registered and reachable?
[2023-07-26 15:41:14] ERROR[22850] chan_pjsip.c: Failed to create outgoing session to endpoint 'Telnyx_PJSIP'
[2023-07-26 15:45:06] ERROR[22850] res_pjsip/location.c: Contact uri or hostname length exceeds pjproject limit or is not a sip(s) uri: sip.telnyx.ca
[2023-07-26 15:45:06] ERROR[22850] config_options.c: Error parsing contact=sip.telnyx.ca at line 291 of /etc/asterisk/vitalpbx/pjsip__50-1-trunks.conf
[2023-07-26 15:45:06] ERROR[22850] res_sorcery_config.c: Could not create an object of type 'aor' with id 'Telnyx_PJSIP' from configuration file 'pjsip.conf'
[2023-07-26 15:45:07] ERROR[22850] res_pjsip_outbound_registration.c: Server URI or hostname length exceeds pjproject limit or is not a sip(s) uri: 'Telnyx_PJSIP'
[2023-07-26 15:45:07] ERROR[22850] res_sorcery_config.c: Could not create an object of type 'registration' with id 'Telnyx_PJSIP' from configuration file 'pjsip.conf'
[2023-07-26 15:45:07] NOTICE[22850] res_sorcery_config.c: Retaining existing configuration for object of type 'registration' with id 'Telnyx_PJSIP'
[2023-07-26 15:45:07] ERROR[2651] res_pjsip_outbound_registration.c: Server URI or hostname length exceeds pjproject limit or is not a sip(s) uri: 'Telnyx_PJSIP'
[2023-07-26 15:45:07] ERROR[2651] res_sorcery_config.c: Could not create an object of type 'registration' with id 'Telnyx_PJSIP' from configuration file 'pjsip.conf'
[2023-07-26 15:45:07] NOTICE[2651] res_sorcery_config.c: Retaining existing configuration for object of type 'registration' with id 'Telnyx_PJSIP'

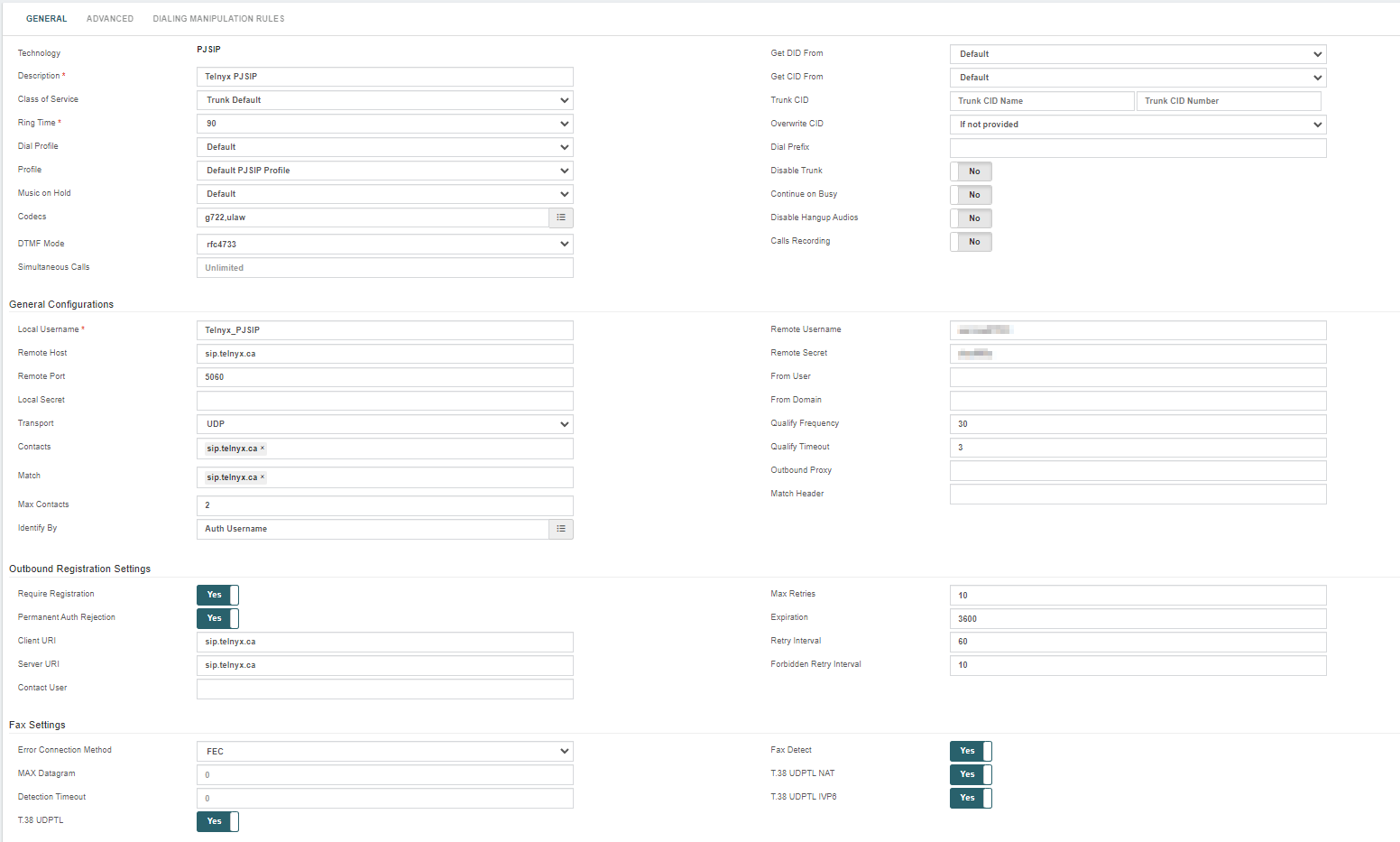

Below is a screenshot of my configuration:

image1552×933 39 KB

I have tried with Authentication (current settings) and IP based without luck.

Once again, setting Telnyx using SIP only works flawlessly.

Any pointers would be appreciated. I could not find my answer reading previous similar posts.

2

Delete the SIP Trunk. Remove the URIs and try again.

3

Hello, Thanks for your reply. It didnt work.

But while playing around I changed these settings and it now works:

Changed sip.telnyx.ca to a SIP URI format sip:sip.telnyx.ca

I am now able to fax and make calls successfully with VitalPBX. Cheers
