Hi guys, moving from 3CX to VitalPBX and loving the new interface…
Can’t set up a simple trunk though. Can call out using the trunk but when I call in I get “This persons phone is currently unavaliable”
PJSIP is responding to the call with SIP/2.0 484 Address Incomplete
Here is the guide for my trunk: https://teamhelp.sipgate.co.uk/hc/en-gb/articles/204547911-How-Do-I-configure-asterisk-with-sipgate

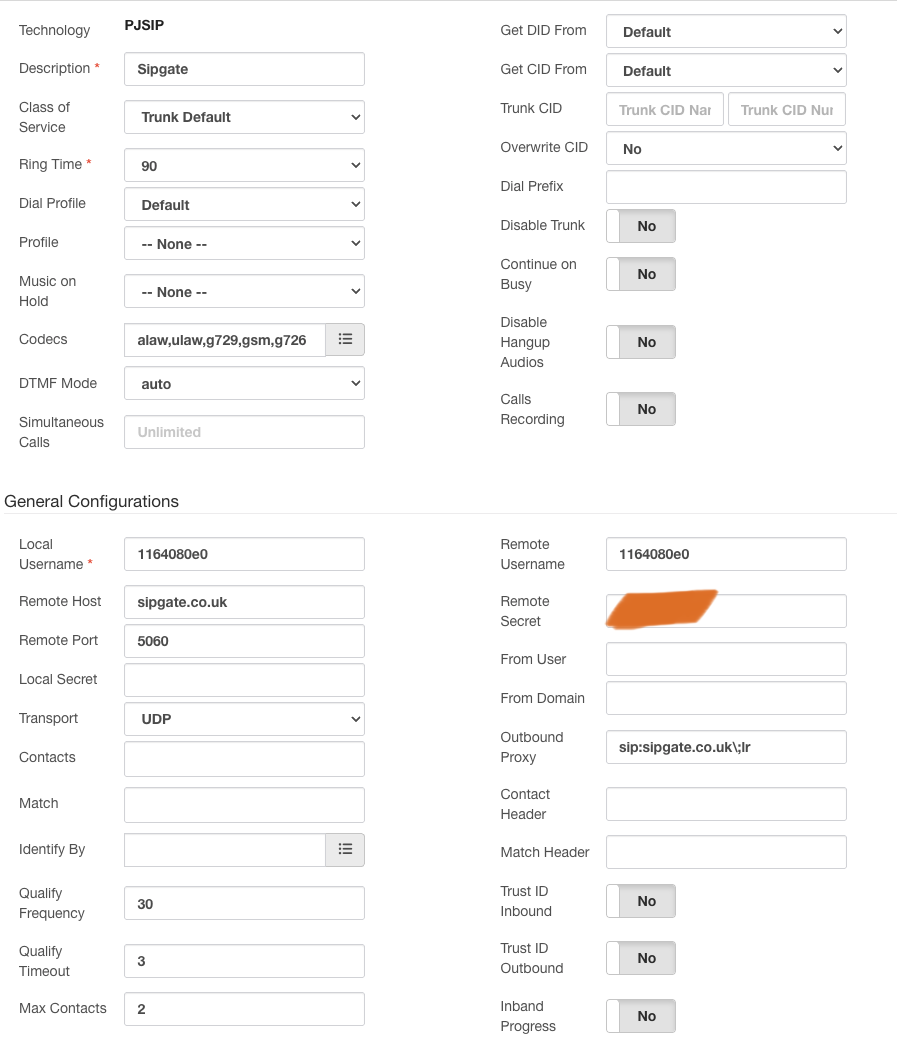

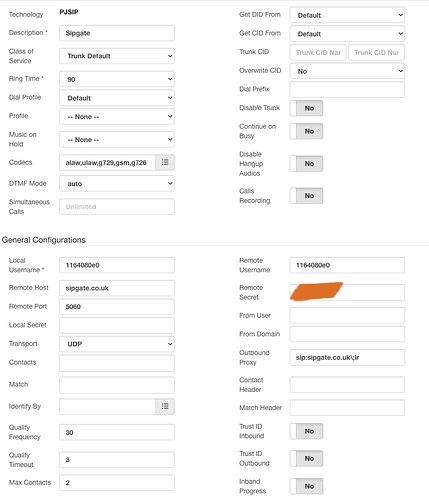

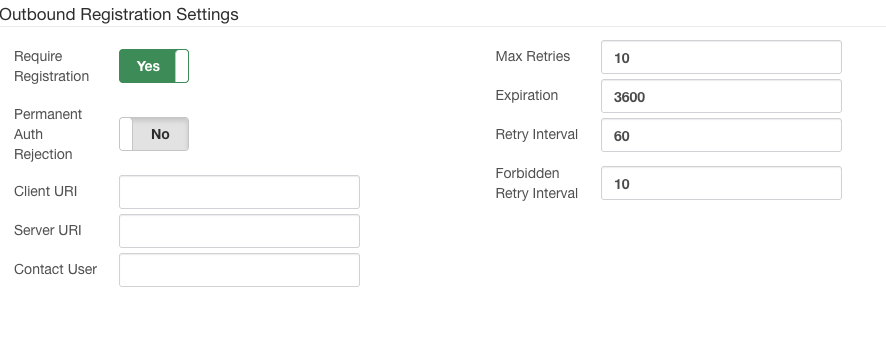

screenshots of my trunk config:
Asterisk PJSIP log below:
<— Received SIP request (1341 bytes) from UDP:217.10.79.23:5060 —>
INVITE sip:s@217.154.61.225:5060;line=guyjxzh SIP/2.0
Record-Route: sip:217.10.79.23;lr
Record-Route: sip:172.20.40.6;lr;did=ff3.4311
Record-Route: sip:217.10.68.137;lr
Via: SIP/2.0/UDP 217.10.79.23;branch=z9hG4bK1d25.cc7e9ff5a869b3ba3a1fc9413a5b2627.0
Via: SIP/2.0/UDP 172.20.40.6;branch=z9hG4bK1d25.8c7fabfb1043252e73ee9456e8c1fe3d.0
Via: SIP/2.0/UDP 217.10.68.137;branch=z9hG4bK1d25.c64029bfaa5ab057c2d59ac247b40fd3.0
Via: SIP/2.0/UDP 217.10.77.209:5060;branch=z9hG4bK3837c6c6
Max-Forwards: 67
From: “01242807966” sip:07834347736@sipgate.co.uk;tag=as654c8fe2
To: sip:1164080e0@sipgate.co.uk
Contact: sip:07834347736@217.10.77.209:5060
Call-ID: 4eb192627cb52e12201c020b2cb75368@sipgate.co.uk
CSeq: 103 INVITE
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
Supported: replaces
Content-Type: application/sdp
Content-Length: 437
v=0
o=root 749590959 749590960 IN IP4 212.9.44.179
s=sipgate VoIP GW
c=IN IP4 212.9.44.179
t=0 0
m=audio 23356 RTP/AVP 9 8 0 3 97 18 112 101
a=rtpmap:9 G722/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:3 GSM/8000
a=rtpmap:97 iLBC/8000
a=fmtp:97 mode=30
a=rtpmap:18 G729/8000
a=fmtp:18 annexb=no
a=rtpmap:112 G726-32/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=sendrecv
a=rtcp:23357
a=ptime:20
<— Transmitting SIP response (763 bytes) to UDP:217.10.79.23:5060 —>
SIP/2.0 484 Address Incomplete
Via: SIP/2.0/UDP 217.10.79.23;rport=5060;received=217.10.79.23;branch=z9hG4bK1d25.cc7e9ff5a869b3ba3a1fc9413a5b2627.0
Via: SIP/2.0/UDP 172.20.40.6;branch=z9hG4bK1d25.8c7fabfb1043252e73ee9456e8c1fe3d.0
Via: SIP/2.0/UDP 217.10.68.137;branch=z9hG4bK1d25.c64029bfaa5ab057c2d59ac247b40fd3.0
Via: SIP/2.0/UDP 217.10.77.209:5060;branch=z9hG4bK3837c6c6
Record-Route: sip:217.10.79.23;lr
Record-Route: sip:172.20.40.6;lr;did=ff3.4311
Record-Route: sip:217.10.68.137;lr
Call-ID: 4eb192627cb52e12201c020b2cb75368@sipgate.co.uk
From: “01242807966” sip:07834347736@sipgate.co.uk;tag=as654c8fe2
To: sip:1164080e0@sipgate.co.uk;tag=3ba10ce8-5b71-43ac-a1c0-c9ea7a0d8e5c
CSeq: 103 INVITE
Server: VitalPBX
Content-Length: 0
