Hi, i want to setup vitalpbx to use with voip provider to make and recieve calls.

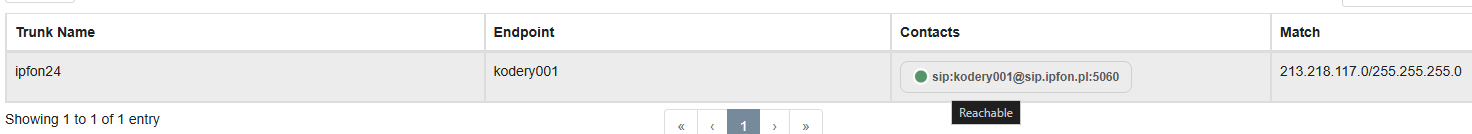

Trunk is registered:
But when call is made from my mobile to PSTN , in SNGREP I see:
2025/12/22 17:48:07.095393 213.218.117.66:5060 → 10.10.70.145:5060
INVITE sip:[email protected]:5060;line=nytjror SIP/2.0
Record-Route: sip:213.218.117.66;lr
Record-Route: sip:213.218.117.92;lr=on;ftag=as5ac7fdcc;vsf=AAAAAAAAAAAAAAAAAABBWEMAW19XWlRdGV5bNw--
Via: SIP/2.0/UDP 213.218.117.66:5060;branch=z9hG4bKeb08.abde9de.0
Via: SIP/2.0/UDP 213.218.117.92;branch=z9hG4bKeb08.0054e56.0
Via: SIP/2.0/UDP 213.218.117.77:5060;received=213.218.117.77;branch=z9hG4bK7008331a;rport=5060
Max-Forwards: 68
From: sip:793982***@sip.inotel.pl;tag=as5ac7fdcc
To: sip:[email protected]:5060
Contact: sip:MYNUMBER793982***@213.218.117.77:5060
Call-ID: [email protected]:5060
CSeq: 102 INVITE
User-Agent: Asterisk PBX
Date: Mon, 22 Dec 2025 16:48:07 GMT
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
Supported: replaces
Content-Type: application/sdp
Content-Length: 455
2025/12/22 17:48:07.097640 10.10.70.145:5060 → 213.218.117.66:5060
SIP/2.0 484 Address Incomplete
Via: SIP/2.0/UDP 213.218.117.66:5060;rport=5060;received=213.218.117.66;branch=z9hG4bKeb08.abde9de.0
Via: SIP/2.0/UDP 213.218.117.92;branch=z9hG4bKeb08.0054e56.0
Via: SIP/2.0/UDP 213.218.117.77:5060;rport=5060;received=213.218.117.77;branch=z9hG4bK7008331a
Record-Route: sip:213.218.117.66;lr
Record-Route: sip:213.218.117.92;lr;ftag=as5ac7fdcc;vsf=AAAAAAAAAAAAAAAAAABBWEMAW19XWlRdGV5bNw--
Call-ID: [email protected]:5060
From: sip:793982***@sip.inotel.pl;tag=as5ac7fdcc
To: sip:[email protected];tag=a883b123-a3d8-4c10-8fca-7d1e52ae23dd
CSeq: 102 INVITE
Server: VitalPBX
Content-Length: 0
2025/12/22 17:48:07.120702 213.218.117.66:5060 → 10.10.70.145:5060
ACK sip:[email protected]:5060;line=nytjror SIP/2.0
Via: SIP/2.0/UDP 213.218.117.66:5060;branch=z9hG4bKeb08.abde9de.0
From: sip:793982***@sip.inotel.pl;tag=as5ac7fdcc
Call-ID: [email protected]:5060
To: sip:[email protected];tag=a883b123-a3d8-4c10-8fca-7d1e52ae23dd
CSeq: 102 ACK
Max-Forwards: 70
User-Agent: Inotel SIP Proxy
Content-Length: 0
and in asterisk debug log:
[2025-12-22 17:48:03] DEBUG[1363]: manager.c:7103 process_message: Running action ‘Command’
[2025-12-22 17:48:07] DEBUG[1267]: res_pjsip/pjsip_distributor.c:390 find_dialog: Could not find matching transaction for Request msg INVITE/cseq=102 (rdata0x7f7368000f98)
[2025-12-22 17:48:07] DEBUG[1267]: res_pjsip/pjsip_distributor.c:468 ast_sip_get_distributor_serializer: Calculated serializer pjsip/distributor-00000025 to use for Request msg INVITE/cseq=102 (rdata0x7f7368000f98)
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_outbound_registration.c:733 line_identify: Determined relationship to outbound registration ‘kodery001’ based on line ‘nytjror’, using configured endpoint ‘kodery001’
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:4306 session_on_rx_request: (null session) Request: INVITE
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:4141 handle_new_invite_request: Request:
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip/pjsip_distributor.c:468 ast_sip_get_distributor_serializer: Calculated serializer pjsip/distributor-00000025 to use for Request msg INVITE/cseq=102 (rdata0x7f73680232b8)
[2025-12-22 17:48:07] DEBUG[1268]: chan_pjsip.c:2914 chan_pjsip_session_begin: kodery001
[2025-12-22 17:48:07] DEBUG[1268]: chan_pjsip.c:2918 chan_pjsip_session_begin: Direct media no glare mitigation
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:3995 new_invite: kodery001
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:4027 new_invite: kodery001: Call (UDP:213.218.117.66:5060) to extension ‘s’ - partial match
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:4597 handle_outgoing_response: kodery001: Method is INVITE, Response is 484 Address Incomplete
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session/pjsip_session_reason_header.c:60 reason_header_outgoing_response: kodery001: Response Code: 484
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session/pjsip_session_reason_header.c:68 reason_header_outgoing_response: kodery001: RC 484 not eligible for Reason header
[2025-12-22 17:48:07] DEBUG[1268]: res_pjsip_session.c:4616 handle_outgoing_response: kodery001

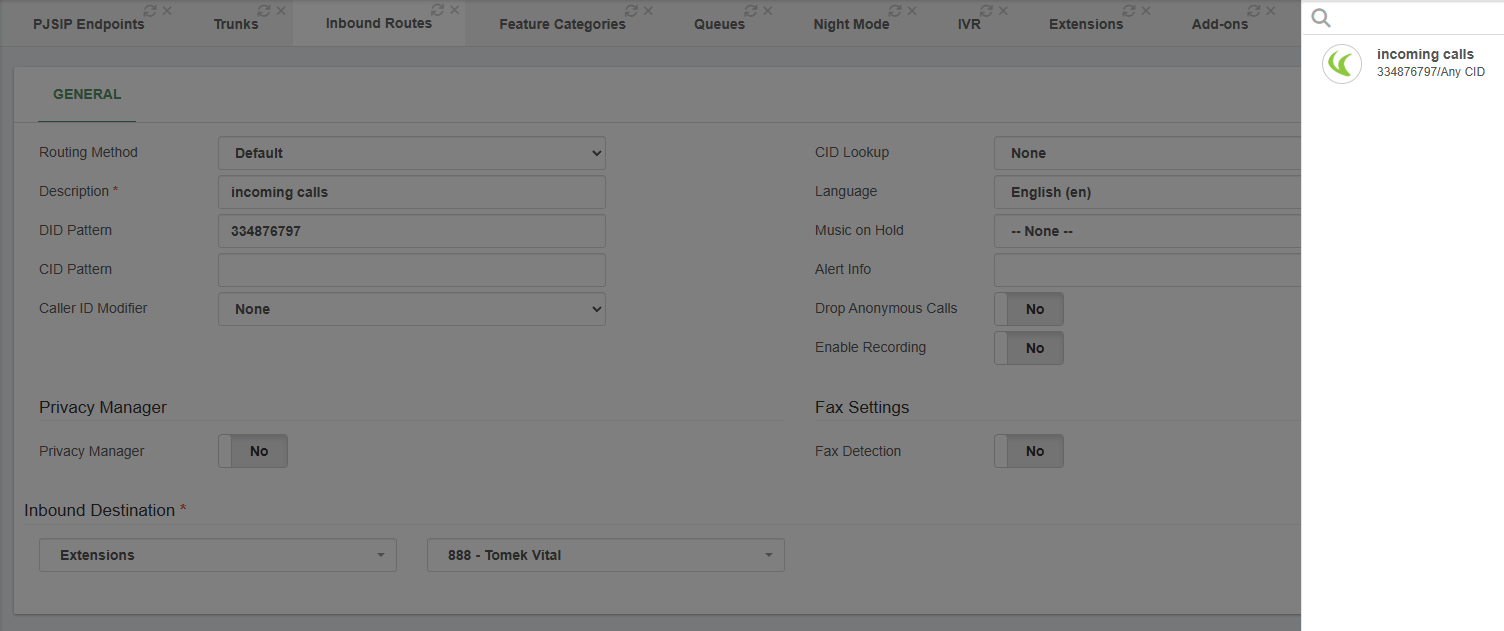

but i have inbound route like this:

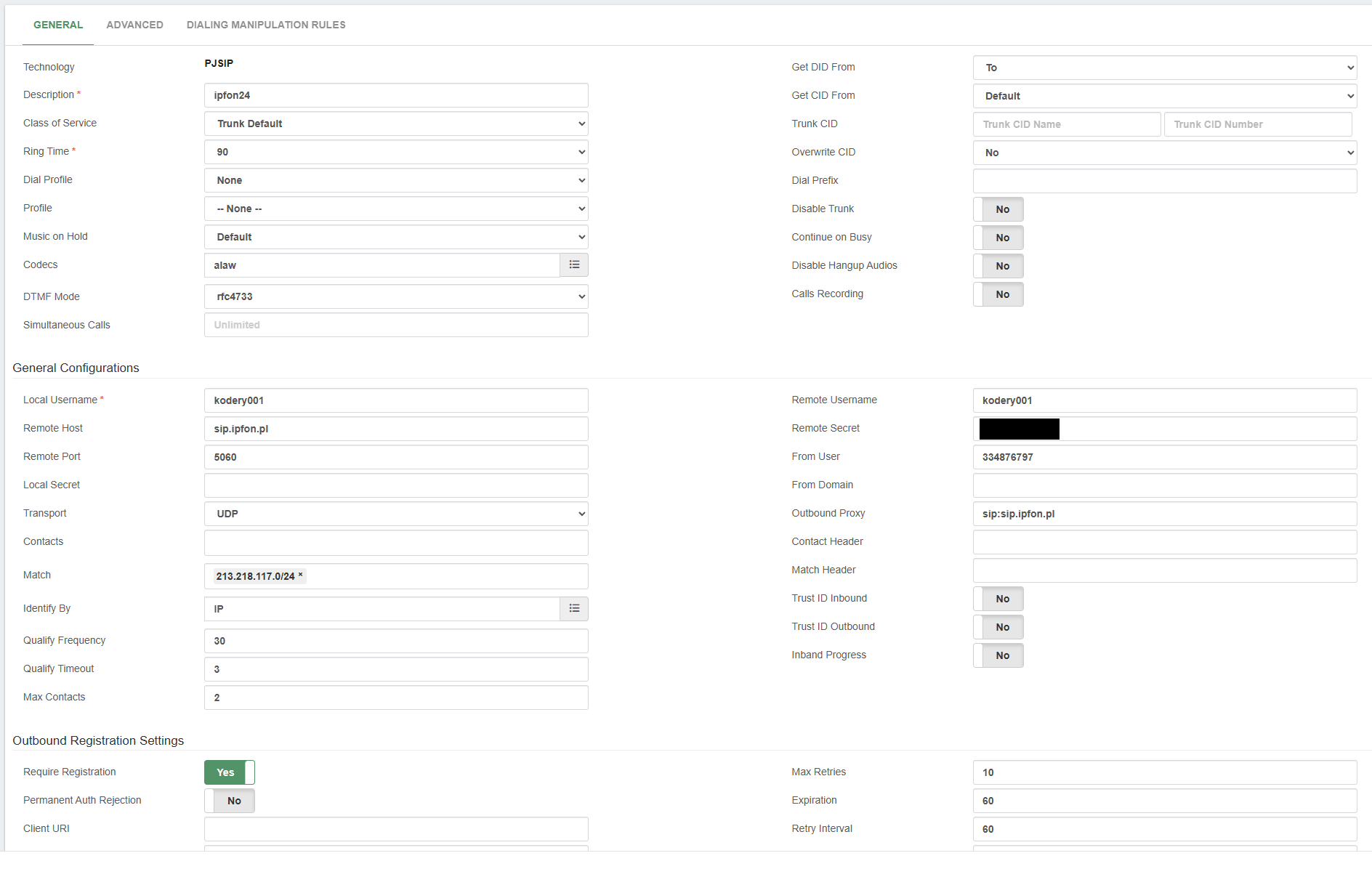

and trunk setup like this:
I need to add that local IP address you see in logs (192.168.55.99) is WAN ip of my router placed at DMZ of provider router. Public IP is set on provider router.
Can You tell me whats wrong?
