Bandwidth IP Auth Trunk Set Up Help

VitalPBX
1

Hello,

I have a friend that I am helping to move over to VitalPBX. He uses Bandwidth as a carrier and they use IP Auth Trunks. Could someone take a look at our trunk settings and see if this looks right or do we need to change anything?

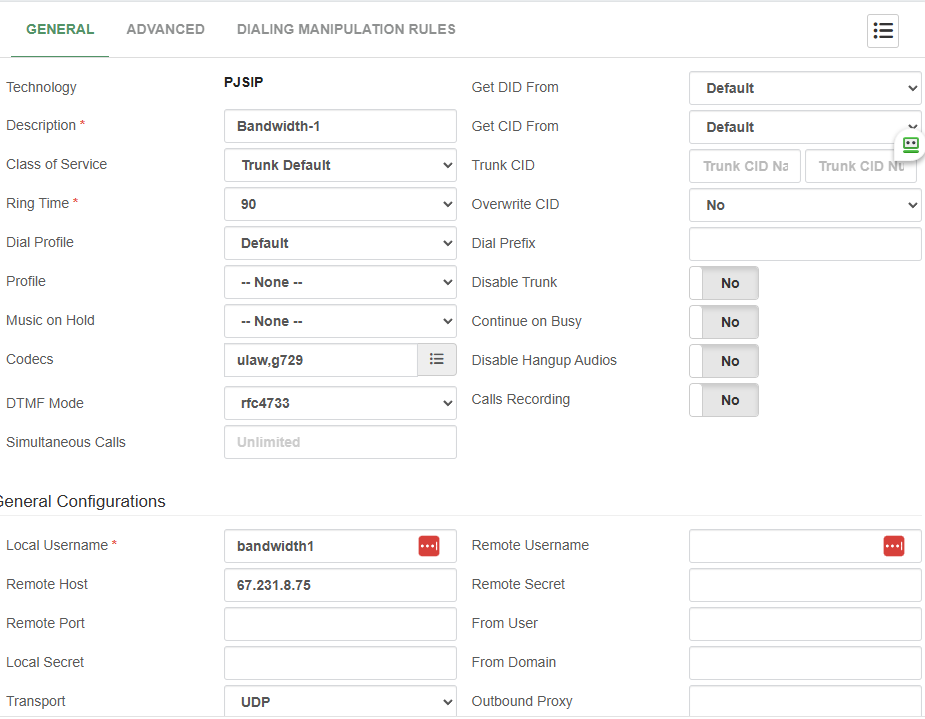

bw1
bw1925×719 29.4 KB

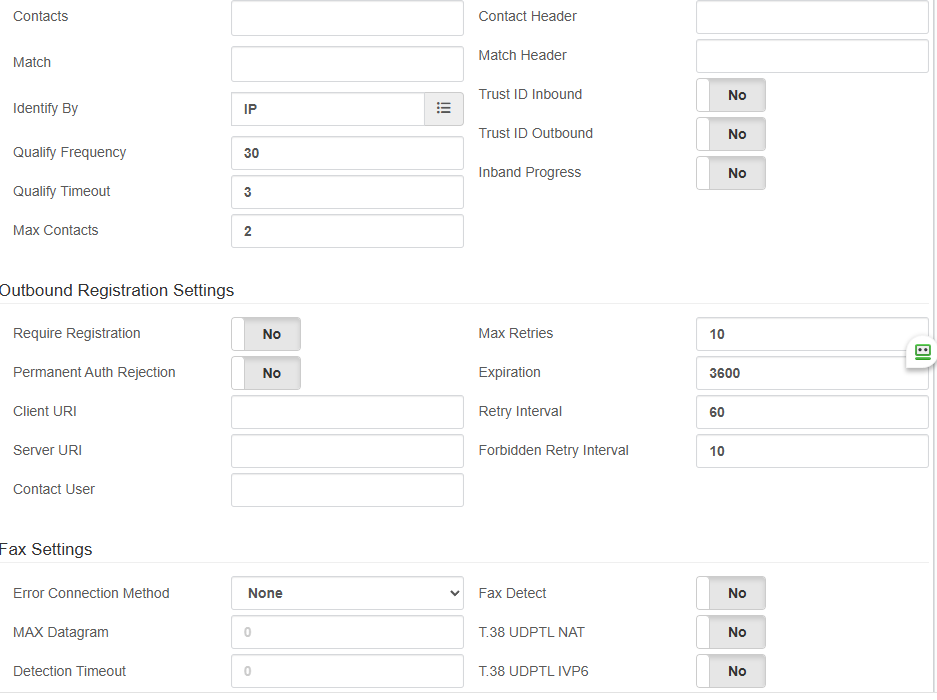

bw2
bw2937×700 25.4 KB

Thanks,
John

2

Define the “Match” field using the Bandwidth trunk IP or Domain. You can define multiple IP/Domains, or IP Ranges (e.g., 10.0.0.1/24)

Select the “Default PJSIP Profile” or another desired “PJSIP” profile in the “Profile” field.

1 Like
3

Thank You Miguel! That worked.
Does anyone know if Bandwidth delivers inbound calls as 10 digit, 11 digit or E.164?

4

You should see it via sngrep

5

My calls from Bandwidth are delivered as 11 digit if that helps.

2 Likes
