401 Error Outbound Call with voip.ms

[howudodat]

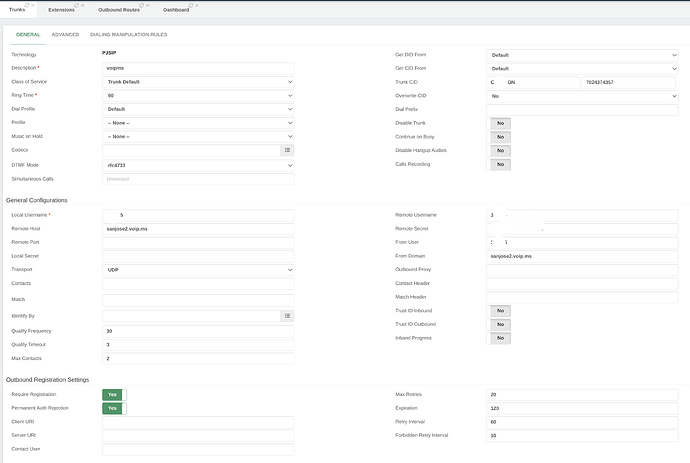

I used to be connected with a 3CX server to voip.ms, but 3CX no longer has a free small version, so now I am trying VitalPBX, it was easy to get setup. extension to extension calling works, as does inbound to my anti-spam IVR, but outbound calls dont work. I am getting a 401 error

Extension to Extension Calling
13:44:39.907286 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: INVITE sip:[email protected] SIP/2.0
13:44:39.907991 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 100 Trying
13:44:39.950270 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 200 OK
13:44:39.985964 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: ACK sip:192.168.1.13:5060 SIP/2.0
13:44:41.520508 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP
13:44:44.099195 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: BYE sip:192.168.1.13:5060 SIP/2.0
13:44:44.099629 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 200 OK

Outbound Calling
13:45:29.588217 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: INVITE sip:[email protected] SIP/2.0
13:45:29.588729 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 401 Unauthorized
13:45:29.607931 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: ACK sip:[email protected] SIP/2.0
13:45:29.607998 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: INVITE sip:[email protected] SIP/2.0
13:45:29.608623 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 100 Trying
13:45:29.639296 IP 192.168.1.13.sip > 208.100.60.41.sip: SIP: INVITE sip:[email protected] SIP/2.0
13:45:29.639815 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 180 Ringing
13:45:29.665170 IP 208.100.60.41.sip > 192.168.1.13.sip: SIP: SIP/2.0 401 Unauthorized
13:45:29.665518 IP 192.168.1.13.sip > 208.100.60.41.sip: SIP: ACK sip:[email protected] SIP/2.0
13:45:29.665737 IP 192.168.1.13.sip > 208.100.60.41.sip: SIP: INVITE sip:[email protected] SIP/2.0
13:45:29.700098 IP 208.100.60.41.sip > 192.168.1.13.sip: SIP: SIP/2.0 100 Trying
13:45:29.722112 IP 208.100.60.41.sip > 192.168.1.13.sip: SIP: SIP/2.0 503 Service Unavailable
13:45:29.722442 IP 192.168.1.13.sip > 208.100.60.41.sip: SIP: ACK sip:[email protected] SIP/2.0
13:45:29.726147 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 183 Session Progress
13:45:29.727352 IP 192.168.1.13.sip > 192.168.1.101.60134: SIP: SIP/2.0 503 Service Unavailable
13:45:29.761921 IP 192.168.1.101.60134 > 192.168.1.13.sip: SIP: ACK sip:[email protected] SIP/2.0

[miguel]

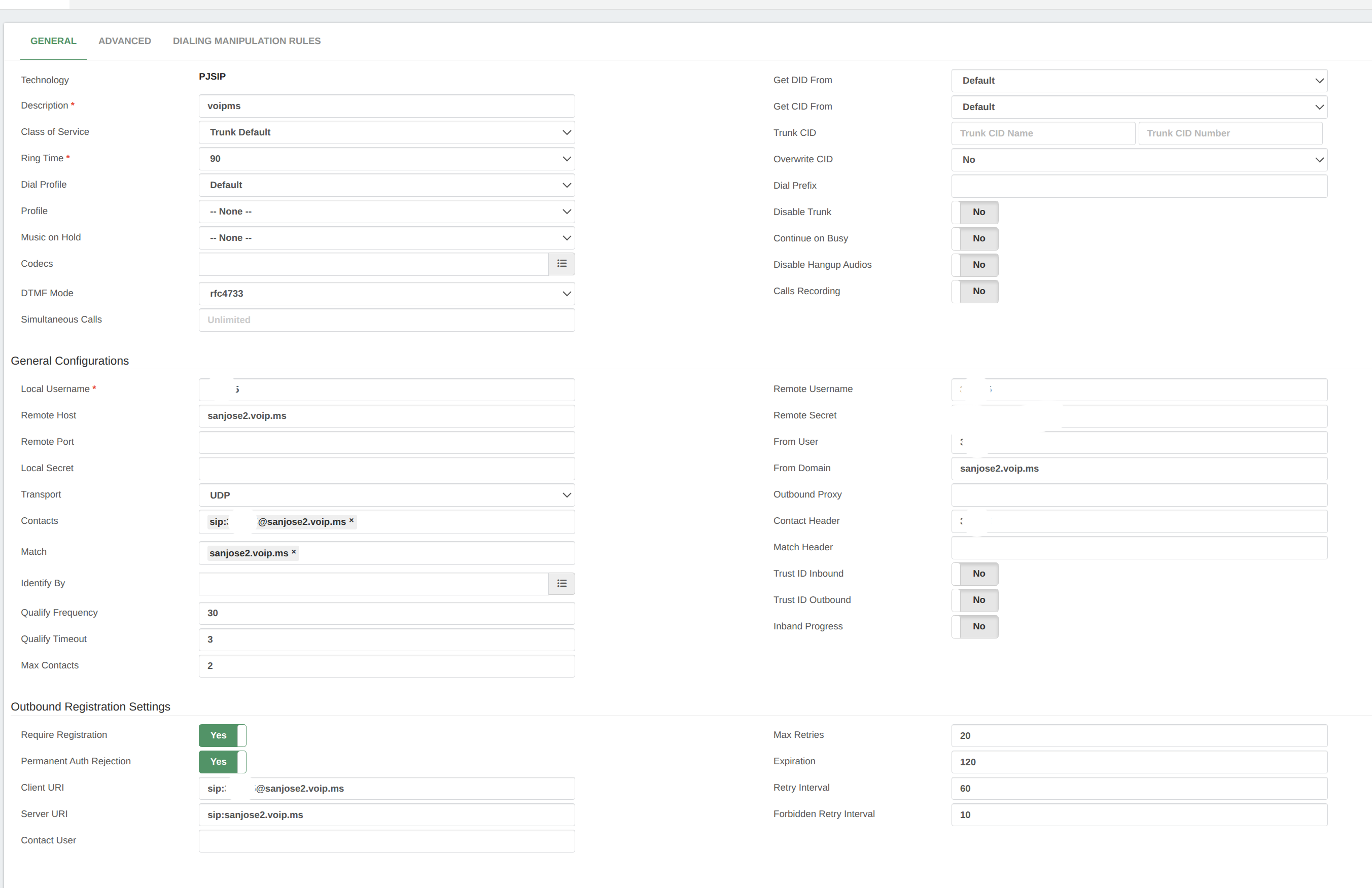

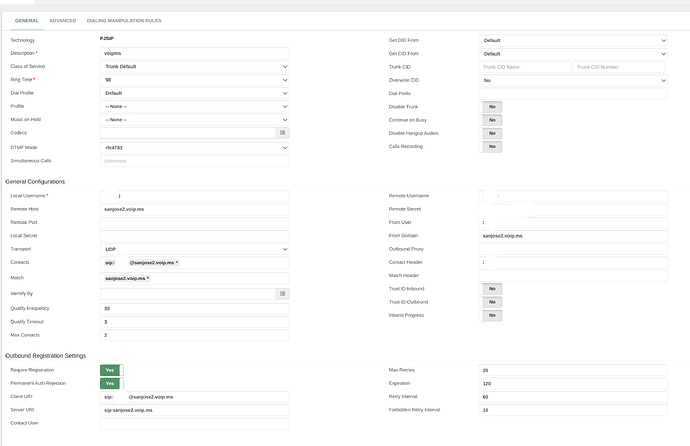

The Following fields are not required because they are created automatically by the PBX.

• Contacts
• Client URI
• Server URI

For Incoming Calls, you must set up the “Identify By” with the values “Auth Username, Username, IP”

Finally, you must send a valid Caller ID number when placing outbound calls.

[howudodat]

ok I cleared out those 3 fields and added a Valid Caller ID number (tried both 10 and 11 digit) and still get Service Unavailable. Inbound calls work

[miguel]

Overwrite CID must be “Yes” or “If not Provided”

[howudodat]

I forgot to mention it, but I also set the field

Identify By

BTW, this is the voip.ms page that I used as my setup guide:
https://wiki.voip.ms/article/VitalPBX

[howudodat]

tried both Yes and If not provided, tried with 10 and 11 digit CID same error

[miguel]

Then tried with a different POP server.

[howudodat]

same error even with different POPs. (I also opened a ticket with voip.ms)

[howudodat]

ok the final setting that resolved the issue was the profile: Default PJSIP profile, now it works
